設計與核心技術
ESS Sabre ES9038Q2M 32-bit DAC
RK3399 ARM® Cortex-A72 @ 2.0GHz ARM® Cortex-A53 @ 1.5GHz
Powered by Silent Angel Streaming Technology (IEEE 802.11 a / b / g / n / ac, 2.4 / 5GHz)
Native Support for Spotify Connect, TIDAL Connect, Qobuz Connect and TuneIn Internet Radio
Roon Ready
Gapless Playback
Music From Network Shared Storage (over SMB / CIFS)
USB Storage / Flash Drive / USB Hard Disk (Single-partition FAT32, exFAT)
iOS / Android LEAK TruStream App Control

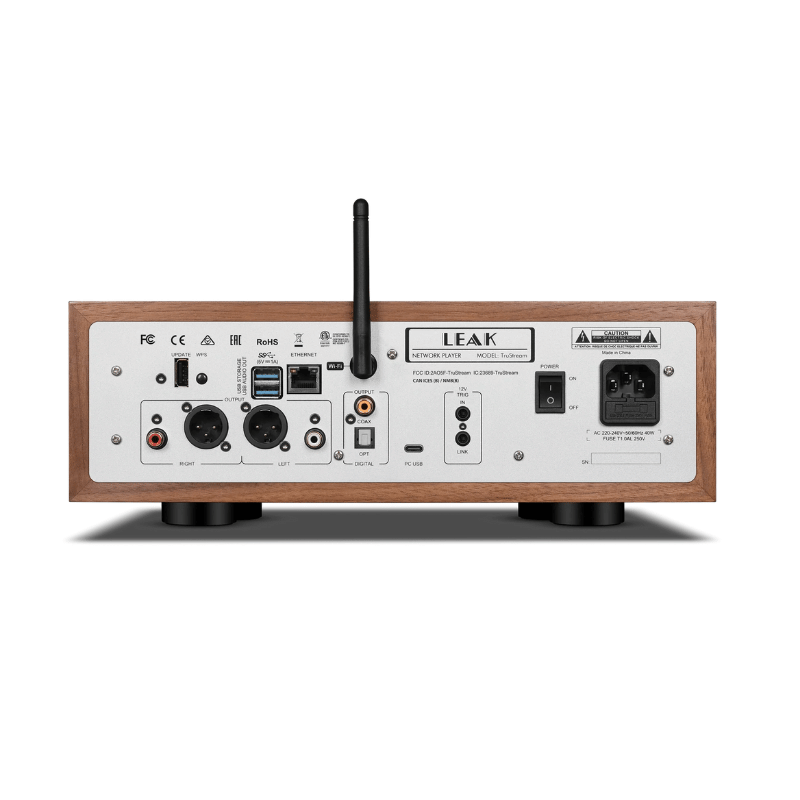

輸入
1 × PC USB (USB Type-C)
1 × Ethernet 10 / 100 / 1000Base-T Ethernet
1 × USB-A for MCU Update
2 × USB-A for USB Storage
輸出
1 × RCA (pair) analogue outputs
1 × XLR (pair) analogue outputs
1 × Optical digital output
1 × Coaxial digital output
2 × USB-A for USB Audio Out
1 × Headphone
支援檔案格式
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF, CUE, APE
Compressed (lossy) Audio: MP3, WMA, AAC, OGG
取樣率
PCM: 44.1 kHz – 768 kHz (705.6 kHz / 768 kHz Fixed-point supported via App streaming)
DSD: DSD64, DSD128, DSD256 (DoP), DSD512 (PC USB)
數位頻率響應
-0.01 dB (20 Hz - 20 kHz, ref.1 kHz)
數位輸出
1 × Coaxial, 1 × Optical, USB Audio Out
類比輸出電壓 (0 dBFS, 1 kHz)
0 – 2.05 Vrms (RCA)
0 – 4.1 Vrms (XLR)
DAC 頻率響應
±0.5 dB (20 Hz - 20 kHz, ref.1 kHz)
DAC 總諧波失真 (THD)
<0.001% (1 kHz @ 2.05 Vrms)
DAC 最高取樣率
768 kHz / 32-bit
訊噪比 (A-weighted)
>116 dB (RCA), >120 dB (XLR)
類比輸出阻抗
120 ohm (RCA), 56 ohm (XLR)
耳機放大器總諧波失真 (THD)
<0.01% (1 kHz, 50 mW)
電源
220–240 V - 50 / 60 Hz
100–120 V - 50 / 60 Hz
標準配件
Power Cord, Remote Control, User Manual
