設計
6-driver, 3 way center channel bass reflex
分音
3rd order electro-acoustic at 2.5kHz (tweeter/mid); 3rd order 700Hz
高音單體

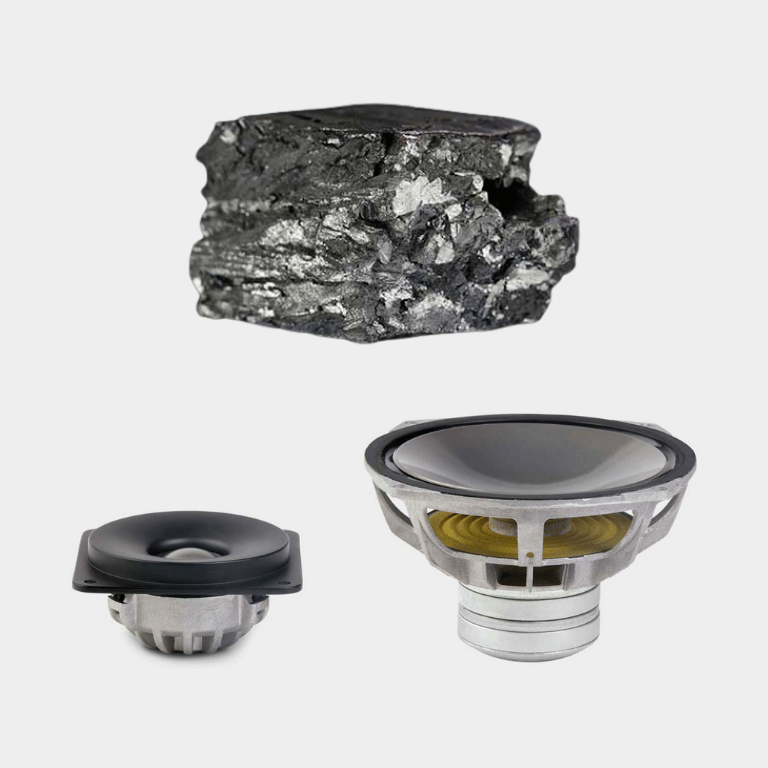

1" (25mm) Truextent® Beryllium dome, ferro-fluid damped / cooled, Perforated Phase-Aligning (PPA™) Tweeter Lens, Finite Element Analysis (FEA) optimized pole piece assembly
頻率響應（正面軸線）
±2 dB from 43 Hz - 45 kHz
頻率響應（30°軸外）
±2 dB from 43 Hz - 20 kHz
中音單體
4" (100mm) Truextent® Beryllium driver, Perforated Phase-Aligning (PPA™) Lens, SHOCK-MOUNT™ Isolation Mounting System, 1" high-temp voice coil
低音單體
Four 7" (178mm) high-excursion X-PAL™ drivers, overmolded Active Ridge Technology (ART™) surrounds, SHOCK-MOUNT™ Isolation Mounting System, 1.5" high-temp tandem voice coil
靈敏度（室內 / 無響室）
93 dB / 90 dB
阻抗
Compatible with 8 ohms
外觀
High Gloss: Vanta Black, Harmony White. Metallic Gloss: Aria Blue, Sonic Silver
